Galvanized Geotextile Lined Sand Filled Gabion Barriers for Preventing Explosion
The another name for Sand Filled Barriers is Gabion Barriers, which is used in 1990. It is originally as the Flood Control Barrier at the first, But Now, it is more and more popular in Military Defence, and also found in homemade Protection.
Brief Introduction for Welded Mesh Bastion Wall:
Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire
Service Life: 15-20 years
Wire diameter: 4.0mm or 5.0mm
Aperture: 3" (76.2mm × 76.2mm ) Standard, Will be adjust according to the panel size.
Color of geotextile: Grey and Military, Beige, Sand Color and so on.
Weight of Geotextile: 250 g/m2 or 300 g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
The Standard Technical Specifications from SX 1 to SX 19
| Welded Military Bastion Fortress |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Defensive Barrier Bastion
Military Defense
1. Perimeter Security Barrier and Defence Wall
2. Temporary Fort and Command Post
3. Observation Points and Border Checkpoints
4. Military Barrier Fortification System
5. Equipment Revetment
6. Explosives and Contraband Search Areas
7. Guard Posts
8. Personnel and Material Bunkers
9. Shooting Range
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Welded Gabion Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, protection Barrier can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Welded Gabion Barrier Box is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Defensive Barrier Bastion Wall:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

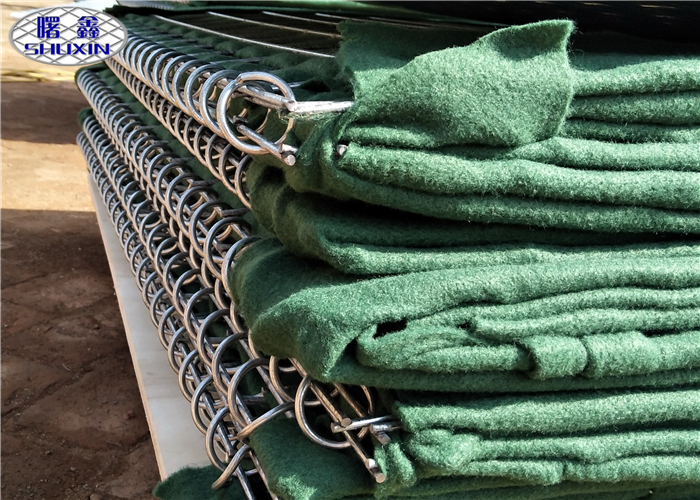

2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
4. Fast and Simple Operation
A security wall using earth-filled barrier can be filled by two persons and a standard front-end loader in just 20 minutes, the equivalent sized wall of 1,500 sandbags will take 10 persons up to 7 hours to fill and build.
