Military Hesco Barrier Welded Wire Mesh 5mm Military Gabion Box For Jordan
1. Introduction :
Military Sand Sall Military Gabion Box is gabion box. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Gabion bastions are mainly used in military and flood control for its modular structure and quick setup. For military, a gabion with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion can be assembled soonest and come into use.
Military Gabion Box products have been used in many countries around the world including Afghanistan, Iraq, Bosnia, Kosovo, Yemen, Sri Lanka, Jordan, UAE and Turkey. Most military organizations currently use products including the US Army, UK MOD, USMC, USAF and NATO.
In addition to the standard Container unit,Military Gabion Box is constantly developing its portfolio of products in response to its customers’ requirements. Multi-cellular wall system force protection product
Military Gabion Box Blast Wall / Container has been on hand to aid civil engineers with a wide range of environmental issues for over 20 years. Originally designed to combat the effects of coastal erosion, Military Gabion Box has since been used extensively throughout the world for other civil engineering applications.
The versatility of a Military Gabion Box structure enables it to be used across a variety of applications such as coastal erosion, flood protection, river and bank stabilisation, retaining walls, land reinforcement and soil conservation.

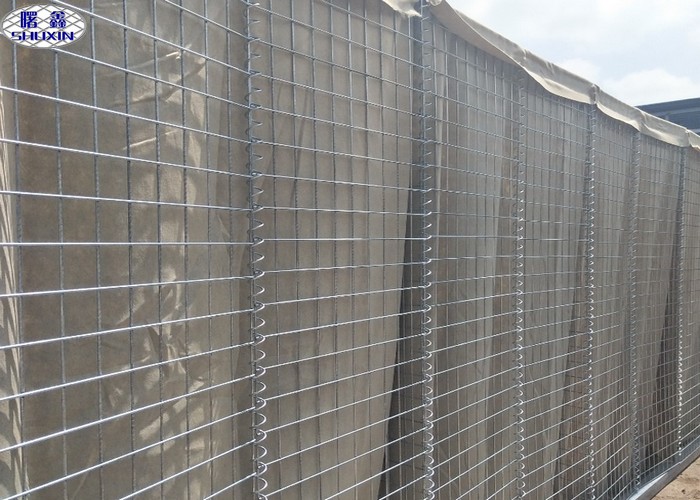

A galvanized steel unit lined with geotextile fabric, Military Gabion Box is completely assembled during manufacture, ensuring rapid installation. Available in a wide range of sizes, units can be joined and extended using the provided joining pins. The primary advantage of the product is its ability to utilise locally available fill material to rapidly construct walls and other structures with minimal manpower and resources.
2. Material:
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
3. Finish: electro galvanized,hot dipped galvanized,galfan coated,
4. barrier Specifications:
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be white,beige-sand color.
Military Gabion Box Defensive Hesco Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barriers Use Deatils:
Unpack---Pull out and set up-----Connect together---- Fill and compact----Finished
Defensive HESCO Barriers Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
FAQ :
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
