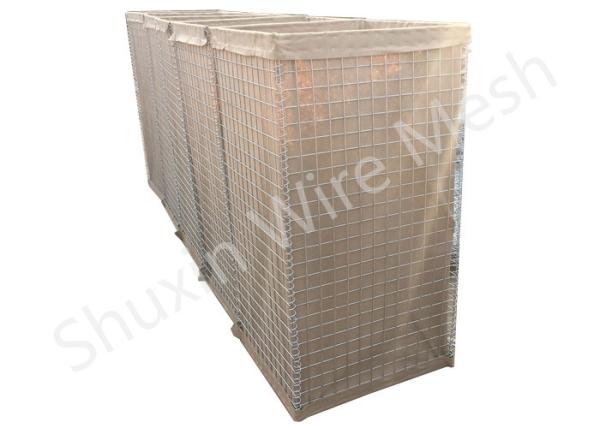

SX - 1 / Military Sand Wall HESCO Protection Barriers With Geotextile Cloth 4.0mm Dia

SX - 1 / Military Sand Wall HESCO Protection Barriers With Geotextile Cloth 4.0mm Dia

Anping Shuxin Wire Mesh Manufactory Co., Ltd. had been dealed with Welded Gabion Barrier / HESCO Barriers more than 10 years. Most of the Welded Mesh barriers are used for Military Defensive of Ministry of Denfense. It is formed by Welded Wire Mesh Panel, Spring Wire and Geotextile. Usd the spring wire tied panel together to form a cage, and stapled Geotextile inside the cage to stop the soil out. Filled the earth inside to from a strong wall to prevent flood and explosion.

Constituent Part of HESCO Defensive Welded Gabion Box Barrier:

1. Welded Wire Mesh Panel: used 4.0mm or 5.0mm Diameter Low carbon Steel Wire
2. Spring Wire: Make the 4.0mm wire into helix type, to tie the panel into a cage
3. Geotextile: used heavy duty geotextile cloth along with the panel, to stop soil out.
4. Staple: prvent the geotextile drop.

Approx Specification for HESCO Welded Gabion Barrier Bastion:

1. Wire Diameter: 4.0mm, 5.0mm
2. Mesh Hole: 3", 76.2mm, or 75.0mm ( The Mesh Hole can adjust according to the whole size of panel)
3. Panel Size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
4. Weight of Geotextile: 250 g/㎡, 300 g/㎡, or according to customer's requirements.
5. Color of Geotextile: Beige, sand color, brown, Military Green, Brown, (All the colors have a little colour aberration,please notice)
6. Surface Treatment: Hot Dipped Galvanized before welding, Hot Dipped Galvanized after welding

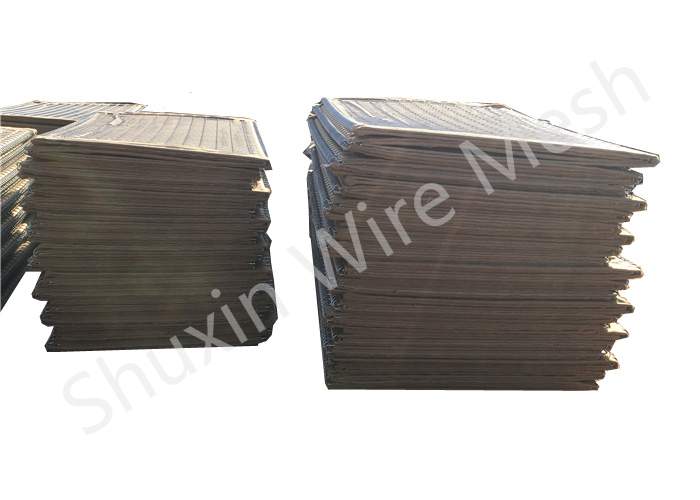

7. Package: Usually used in Wooden Pallet, the quantity for each pallet is based on the type of Sand Filled Barriers.

The Standard Technical Specifications from MIL 1 to MIL 19

The Application for Welded Defensive Bastion Wall:

1. HESCO Military Defense

• Perimeter Security Barrier and Defence Wall
• Temporary Fort and Command Post
• Observation Points and Border Checkpoints
• Military Barrier Fortification System
• Equipment Revetment
• Explosives and Contraband Search Areas
• Guard Posts
• Personnel and Material Bunkers
• Shooting Range

2. Flood Control

• Flood Prevention Barrier
• Permanent or Semi-permanent Dike
• Flood Control Retaining Wall
• Protection Engineering of Seaside Area
• Protecting Existing Structures
• Coastal Erosion Control

Installation Notes

1. Before filling the earth, The gabion cage must be put straightly, and fix by soil around the outside, to ensure the cage will not collapse. Geotextile need to put along with each side

   of the cage.

2. When filling, fill the earth slowly, after each filling, spader should be used to pave and compact the soil to ensure the stressed evenly.

3. The capacity of cage is fix, do not load too much soil.

4. If the soil is uneven and not compacted, the soil will subside over a long period of time, resulting in uneven stress and cage deformation, then damaged.
