Height 2' Mil 2 Defensive Barrier Hesco Barrier Galvanized Gabion Wire Mesh Retaining Wall
1. Defensive Barrier Hesco Barrier Introduction :
Military Gabion Box (steel weld mesh gabion)are good.
Solution for emergency flood control,shelter house,military defence wall.
2. Defensive Barrier Hesco Barrier Material:
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
3. Defensive Barrier Hesco Barrier Finish: electro galvanized,hot dipped galvanized,galfan coated,
4. Defensive Barrier Hesco Barrier barrier Specifications:

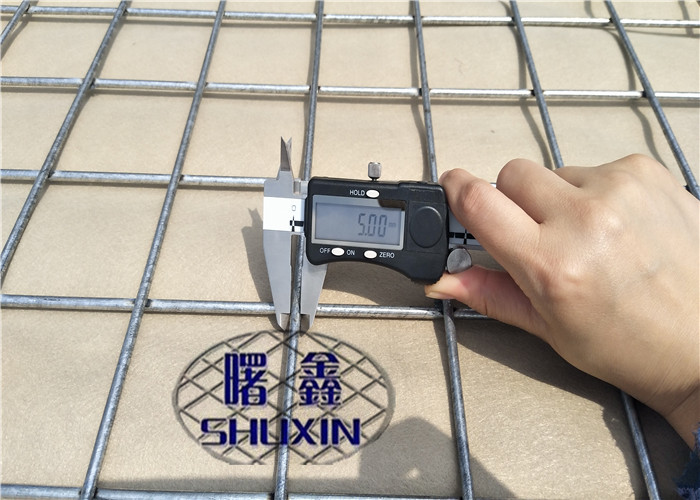

1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be white,beige-sand color.
Defensive Barrier Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Hesco Barrier Use Deatils:
Unpack---Pull out and set up-----Connect together---- Fill and compact----Finished
Defensive Barrier Hesco Barrier Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
We have specialized equipments and professional inspectors. We can supply the quality assurance to the customer.
Due to our hard working technicians and the continuously pursue of outstanding quality, we have exported our product to Northern America, Europe, South Africa, Latin America, the Middle East, the Oceania, and Asia, etc.
If you have another question, pls feel free to contact us .
