Military Sand Filled Heavy Galvanized Defensive Bastion Barriers Hesco Blast Wall
Product Description:
All KN products are pre-as-sembled and deliveredpalletised with joining pins,to enable the connection ofindividual units, which canthen be filled with availablematerial using minimalmanpower and commonlyavailable equipment.Protection is afforded bythe fill material of thestructure as a conse-quence of its mass andphysical properties, alliedwith the proven dynamicproperties of Concertainer units.
1.Introduction:
Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for defensive barriers and flood control.
2. Working principle:
It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.
3. Quality assurance:
Our factory has been verified by ISO Group, the world's leading inspection company. Our products strictly follow ISO9001 and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012
Defensive barrier specifications:
1. Wire diameter: 4-5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
The Standard Technical Defensive BarrierSpecifications from SX 1 to SX 19
| Defensive Barrier for Retaining Wall |
| Model | Height | Width | Length |
| KN-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| KN-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| KN-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| KN-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| KN-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| KN-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| KN-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| KN-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| KN-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| KN-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| KN-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| KN-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| KN-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Application of Defensive Barrier:

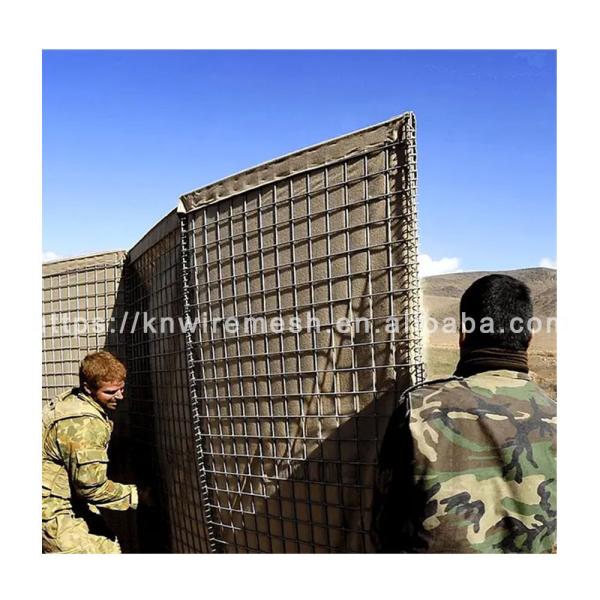

1. Fortifications
Most people use defense barriers to build fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.
2. Shooting range
Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.
3. Flood control
Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.
Advantages of Defensive Barrier:
1. Removable

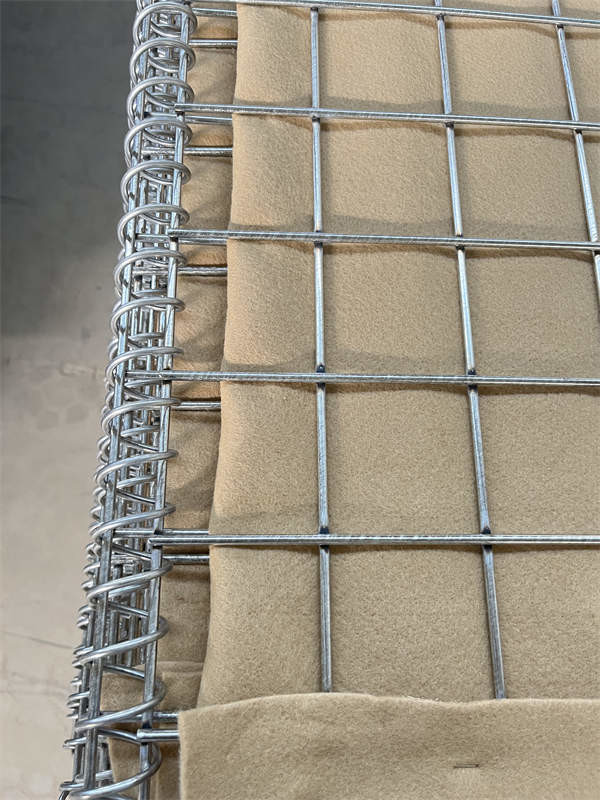

It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
Packing & Shipping:
Product Packaging:
The Defensive Barrier product will be packaged in a sturdy cardboard box to ensure safe delivery. The box will have our company logo and product information printed on it.
Shipping:
Orders will be shipped within 2 business days of receiving payment. Delivery time will vary depending on the destination, but typically takes 3-5 business days.
