Brand Name : SHUXIN
Model Number : SX-HESCO
Certification : ISO, CE
Place of Origin : HeBei,China
MOQ : 100 PC
Price : Negotiated
Payment Terms : TT,LC, Western Union, MoneyGram
Supply Ability : 2000 pcs each month
Delivery Time : 7-15 days
Packaging Details : Wooden pallet
Product name : Boundary Protection Defensive Barrier Welded Mesh Barrier Bastion
Application : Military Barriers,River Pretection
Processing Service : Bending, Welding, Cutting, Defensive barriers
Wire diameter : 4.0 mm, 5.0 mm
Packing : Pallet
Feature : Easily Assembled, Anti-rust
Surface treatment : Hot dipped galvanized
Key word : Galvanized defensive barrier
Product Description
Defensive bastion is a wall that has the ability to resist explosive shock waves and can limit the destructive effect of theexplosion to a certain range. Compared with the reinforced concrete defensive bastion, it has the advantages of lightweight, easy loading and unloading, recyclable and reusable.
Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy, and robust solution foremergency flood protection or long-term wetland restoration.
Defensive Barriers: Protecting both and civilian personnel in dangerous environments demandsdefensive solutions that are secure, reliable, and readily available.
Protective Barriers: Protect your workforce, Create a secure refuge for your employees byprotecting up to eight people with Accommodation Bunker.
Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal forcustomer-facing perimeter security where a more benign appearance is required.
Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit thedestructive effects of explosions within a certain range.
Compared with the concrete explosion-proof wall, it has the advantages of light weight, easyloading and unloading,recyclable and reusable.
All KN products are pre-as-sembledand delivered palletised with joining pins,to enable the connection of individual units,which can then be filled with availablematerial using minimal manpower andcommonly available equipment.

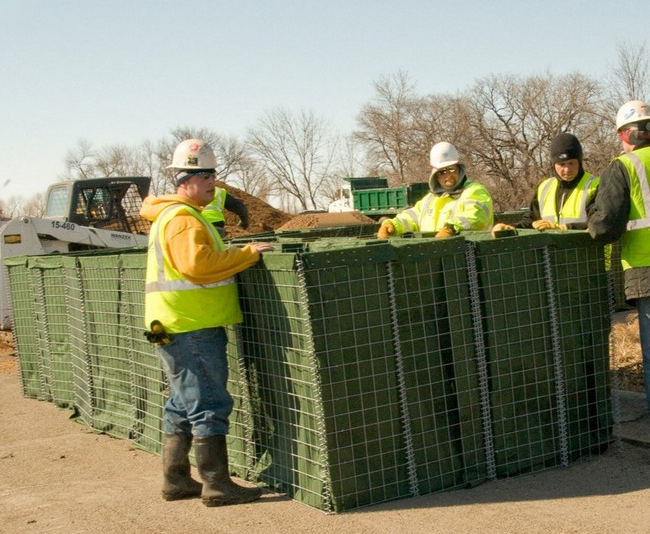

Assembling the bastion entails unfolding it andfilling it with sand, soil or gravel, usually usinga front end loader.The placement of the barrieris generally very similar to the placement of asandbag barrier or earth berm except that roommust generally be allowed for the equipmentused to fill the barrier.
Packing&Shipping

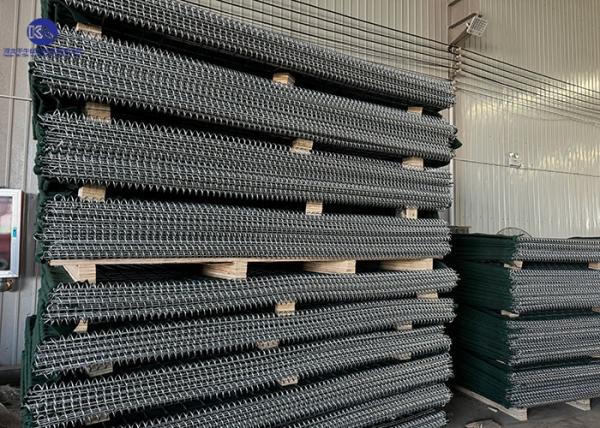

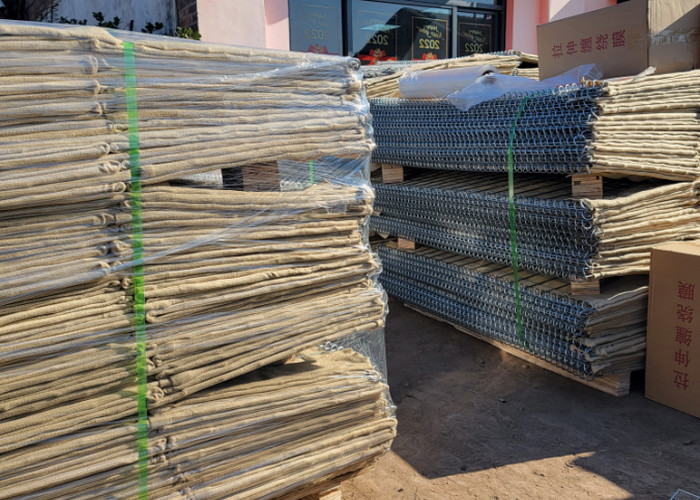

Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
MODEL | HEIGHT | WIDTH | LENGTH | WEIGHT | CELLS No.s | |
KN-1 Unit | 4'6''(1.37mm) | 3'6''(1.06m) | 32'9”(10m) | 149(kg) | 9 | 1x4+1x5cells |
KN-2 Unit | 2'(0.61m) | 2'(0.61m) | 4'(1.22m) | 10(kg) | 2 | 1x2cells |
KN-3 Unit | 3'3”(1.00m) | 3'3”(1.00m) | 32'9”(10m) | 113(kg) | 10 | 2x5cells |
KN-4 Unit | 3'3”(1.00m) | 5'(1.52m) | 32'9”(10m) | 155(kg) | 10 | 2x5cells |
KN-5 Unit | 2'(0.61m) | 2'(0.61m) | 10'(3.05m) | 22(kg) | 5 | 1x5cells |
KN-6 Unit | 5'6”(1.68m) | 2'(0.61m) | 10'(3.05m) | 66(kg) | 5 | 1x5cells |
KN-7 Unit | 7'3”(2.21m) | 7'(2.13m) | 91'(27.74m) | 936(kg) | 13 | 2x4+1x5cells |
KN-8 Unit | 4'6”(1.37m) | 4'(1.22m) | 32'9”(10m) | 153(kg) | 9 | 1x4cels+1x5cels |
KN-9 Unit | 3'3”(1.00m) | 2'6”(0.76m) | 30'(9.14m) | 101(kg) | 12 | 2x6cells |
KN-10 Unit | 7'3”(2.21m) | 5'(1.52m) | 100'(30.50m) | 1040(kg) | 20 | 4x5cells |
KN-11 Unit | 4'(1.22m) | 12”(0.30m) | 4'(1.22m) | 16(kg) | 2 | 1x2cells |
KN-12 Unit | 7'(2.13m) | 3'6”(1.06m) | 108'(33m) | 813(kg) | 30 | 6x5cells |
KN-19 Unit | 9'(2.74m) | 3'6”(1.06m) | 10'5”(3.175m) | 198(kg) | 6 | 1x6cells |
All dimensions and weight are nominal Diagrams and products are for iustrative purpose onlv. |
![]() |
Boundary Protection Defensive Barrier Welded Mesh Barrier Bastion Images |
